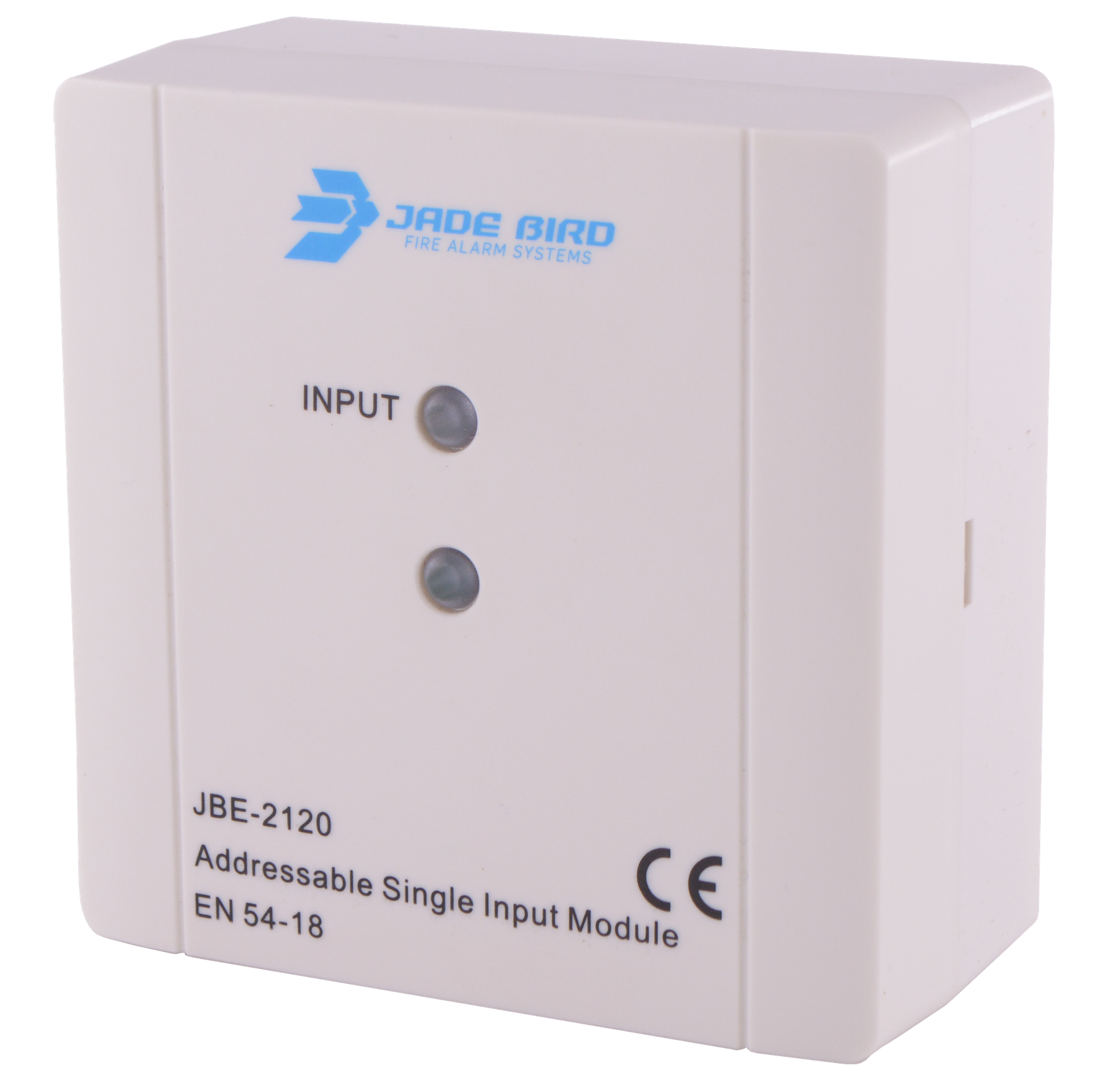

JBE-2120
Addressable Input Module
JBE-2120 is an addressable input module designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol. The module is loop-powered and provides one logic input to the fire detection system controlled by the fire panel.
This input is electrically isolated from the loop and can be used for monitoring the state of one normally open dry-contact switch. Input modules are often used to monitor third-party equipment such as a door contact. When the input is activated, the LED turns on and the module reports the event to the fire panel.
Monitored for short and open circuit input
The JBE-2120 will notify the control panel if there is a disconnection in the pair of cables which leads to the monitored field equipment.
Front LED indicator
The LEDs provide local information of the input status to support installation inspection and troubleshooting.
Backbox with connection terminal allowing easy removal/installation
Programmable address with JBE-AT1
EN 54-18 certificate.
